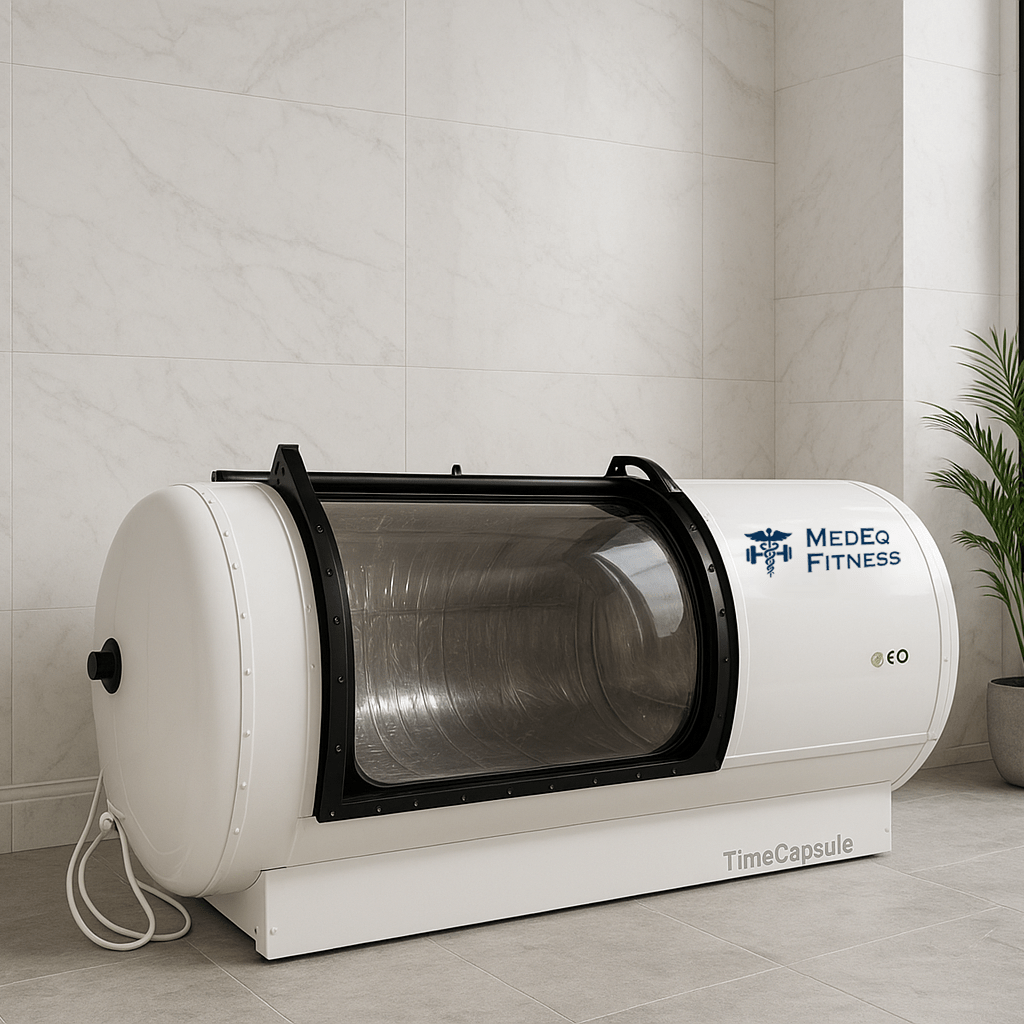

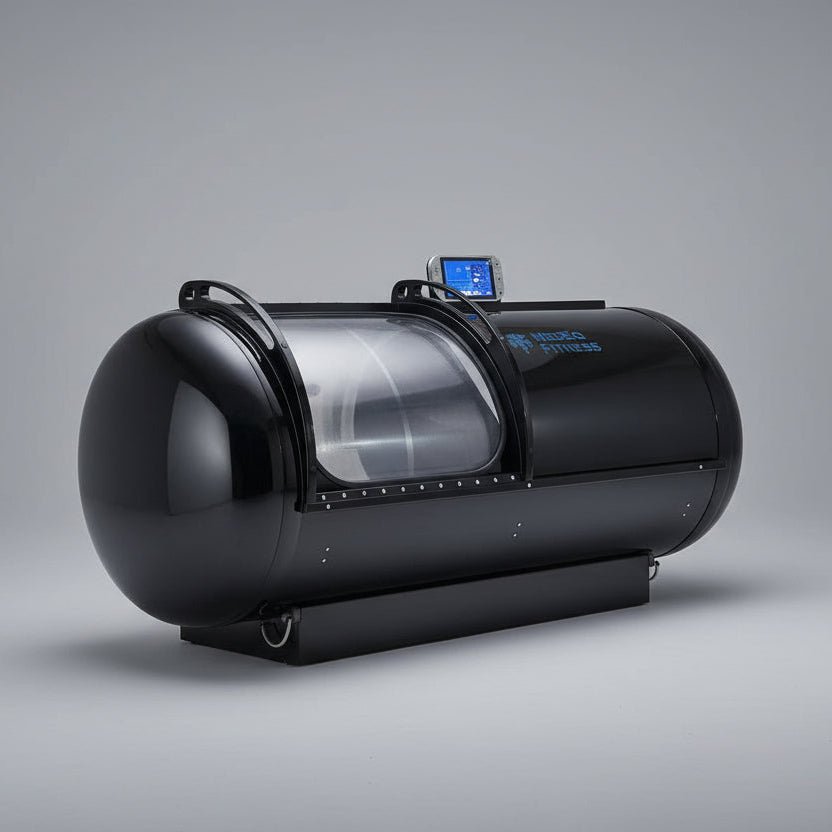

MedEq C750+ Capsule Hard-Shell Hyperbaric Oxygen Chamber

The MedEq C750+ is our upgraded, traditional capsule-style hard-shell hyperbaric oxygen chamber custom manufactured to MedEq Fitness specifications. It delivers true 2.0 ATA therapeutic pressure with an integrated high-flow oxygen system, advanced air purification, and full environmental control in a compact, luxury-grade footprint.

Designed for use by fitness enthusiasts, athletes, clinics, recovery centers, med-spas, and serious home users, the C750+ combines medical-grade engineering with physician-led curation, including an optional red light panel, optional full BIBS oxygen delivery system, standard upgraded host unit (air compressor + oxygen concentrator + air conditioner all in one), and intelligent dual-screen controls.

*We do not recommend combining the optional red light panels and BIBS together in the C750+ due to the reduction in internal volume for the occupant. We recommend either one or the other, but not both.

Features

• • True 2.0 ATA Therapeutic Pressure: Capsule-type hard shell chamber rated up to 2.0 ATA (≈2 bar) for higher-intensity protocols. Factory KX-Y01 configuration supports a 1.9–2.0 ATA operating range for flexible clinical and wellness use.

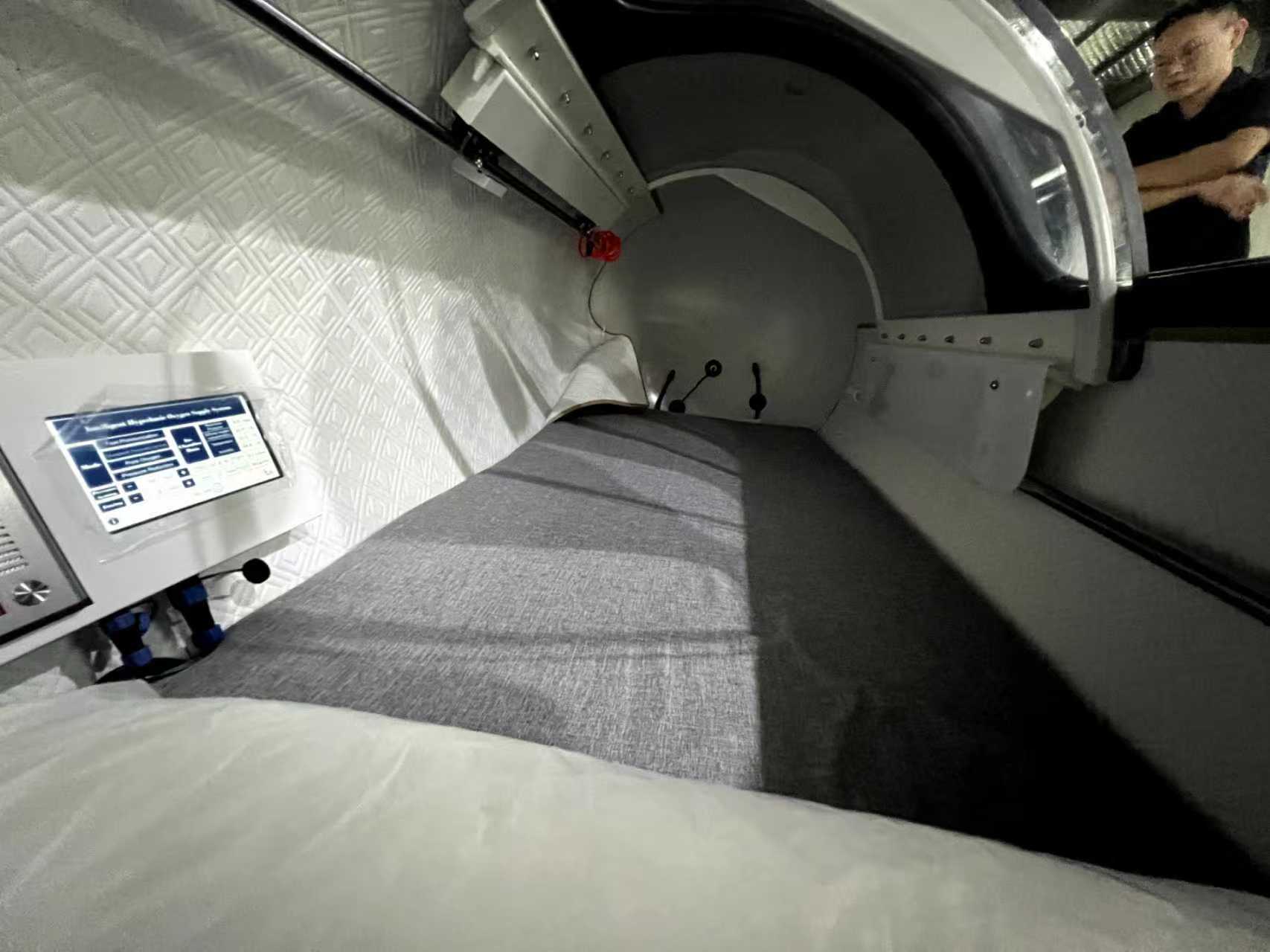

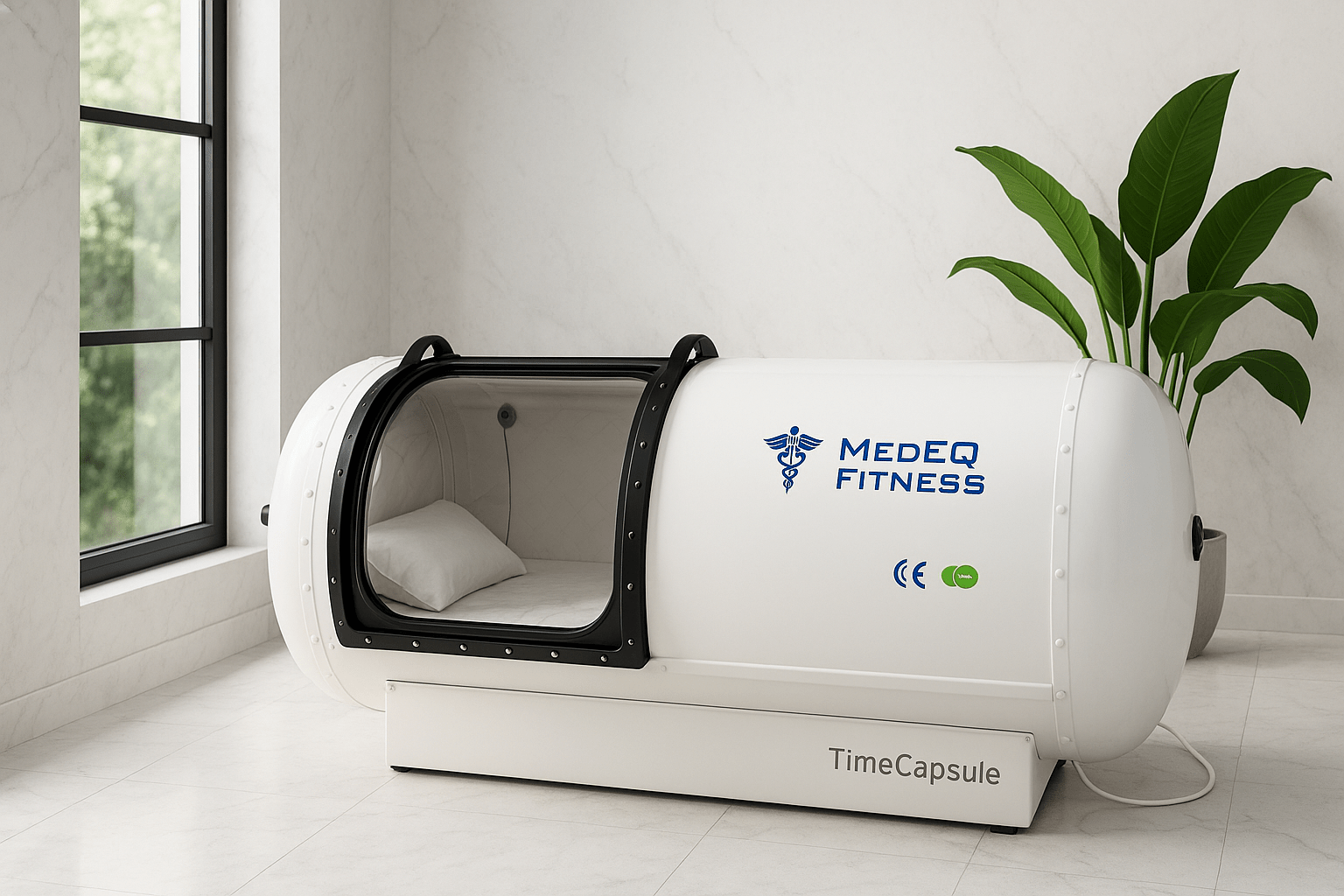

• • Compact Capsule Design: Internal capsule length ~2000 mm (78.7 in) with 750 mm (29.5 in) diameter for a spacious monoplace layout while maintaining a small footprint in the room. Recumbent "pod" design supports a comfortable lying or reclined position.

• • Upgraded Oxygen System & Flow Capacity: PSA oxygen generator delivering high-purity oxygen (≈93% ±3%) at therapeutic pressure. High-flow output (up to ~15 L/min at 2.0 ATA, unit-set) feeding the BIBS system for stable oxygen delivery during the entire session.

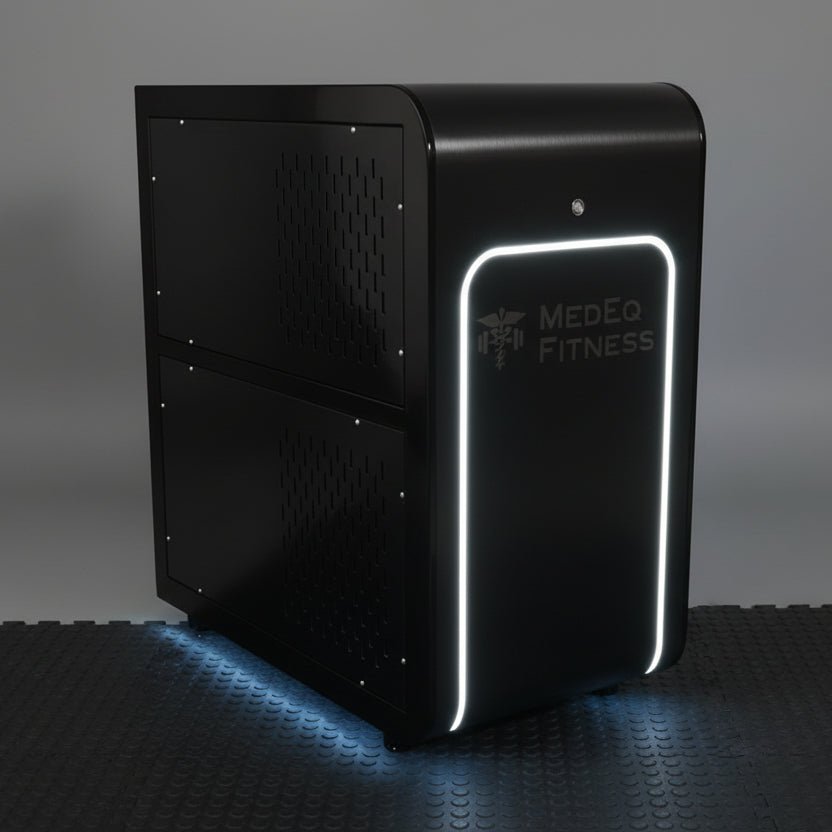

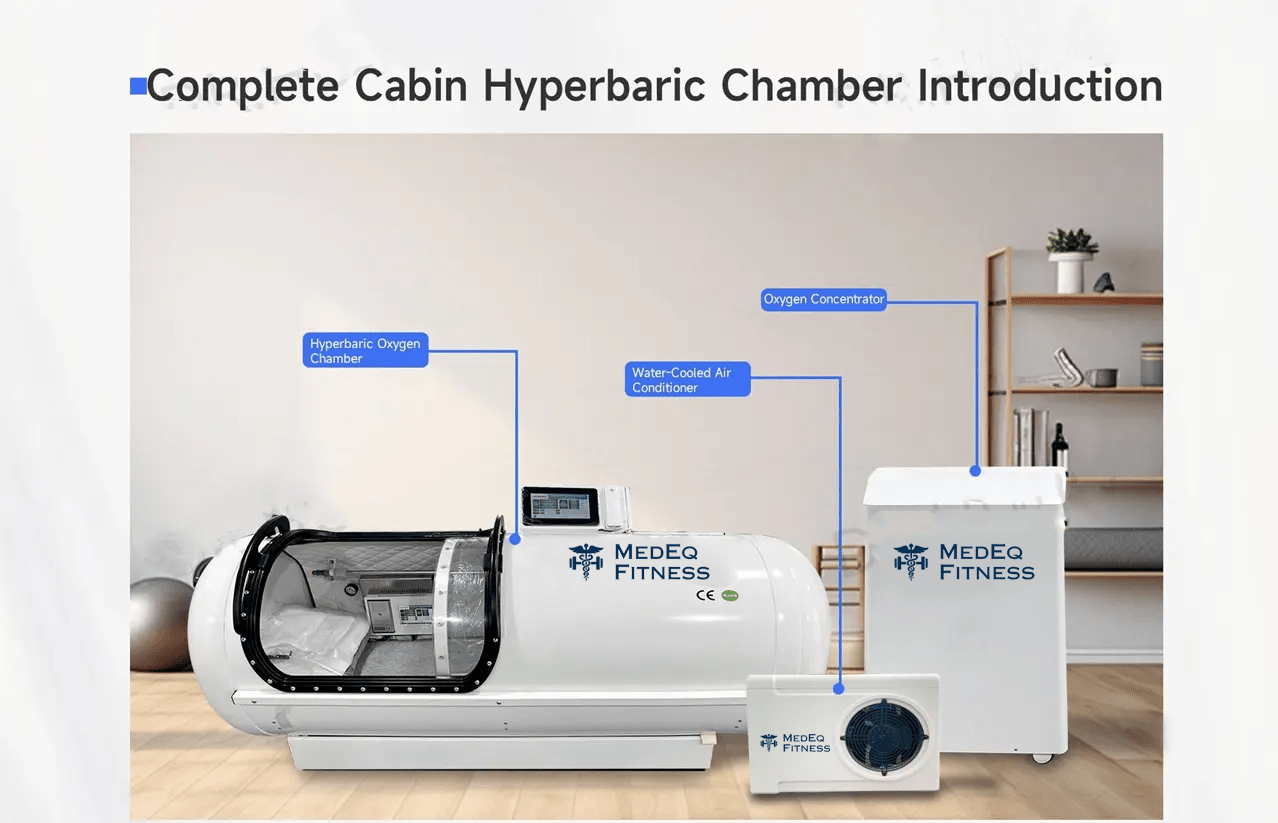

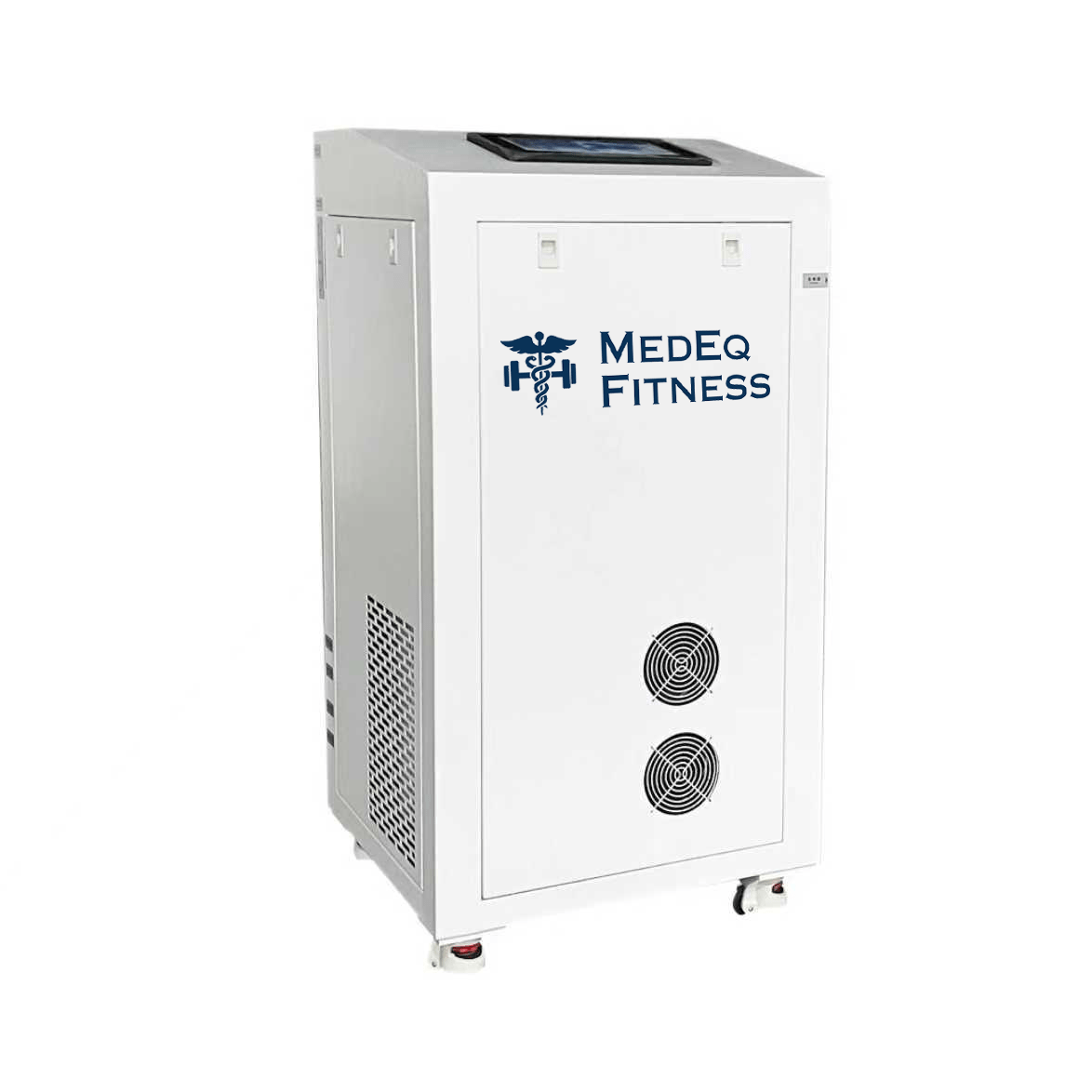

• • All-in-One Host Unit: Single external host powers the entire system with oil-free air compressor for pressurization, PSA oxygen concentrator, and integrated air-conditioning for cabin temperature control. Reduces clutter and installation complexity compared to separate components.

• • Optional Upgrade: Built-In Breathing System (BIBS): BIBS delivers high-purity oxygen directly through a sealed mask instead of enriching the entire chamber air. Supports safer operation by helping keep cabin oxygen closer to room-air levels. Ideal for clinics, recovery centers, and advanced home users who want protocol-driven oxygen delivery.

• • Multi-Stage Air Filtration & Ionization: Multi-stage intake filtration prior to cabin delivery (particulate + advanced filters) to help remove dust and airborne contaminants. Integrated air purification with negative ionization to help freshen incoming air and improve perceived air quality inside the chamber.

• • Environmental Comfort & Noise Control: Integrated cooling via the host's air-conditioning loop to maintain comfortable cabin temperature. Engineered for quiet operation with low internal cabin noise; typical host noise kept in the ≤50 dB range so users can relax or use media devices during treatment.

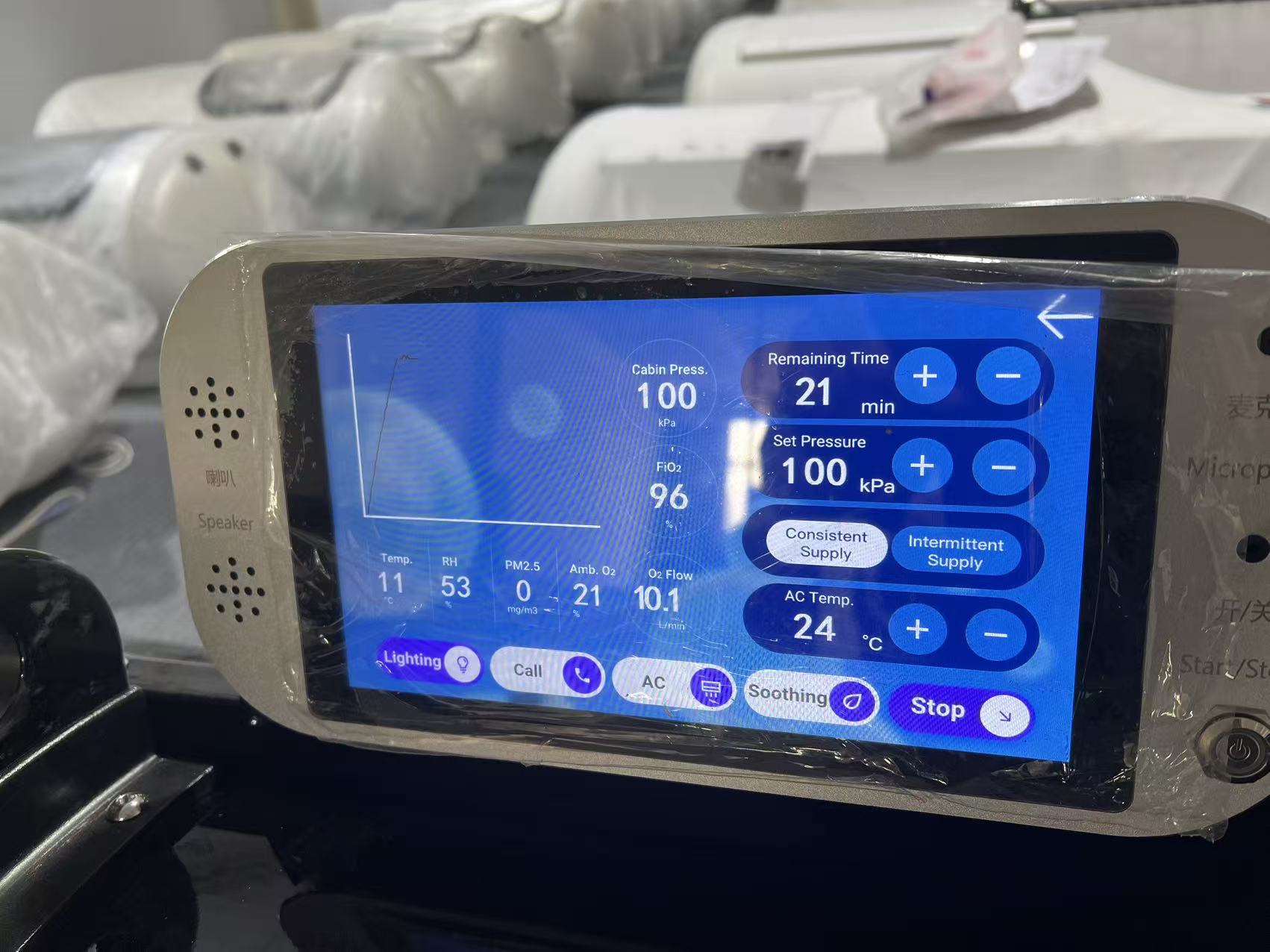

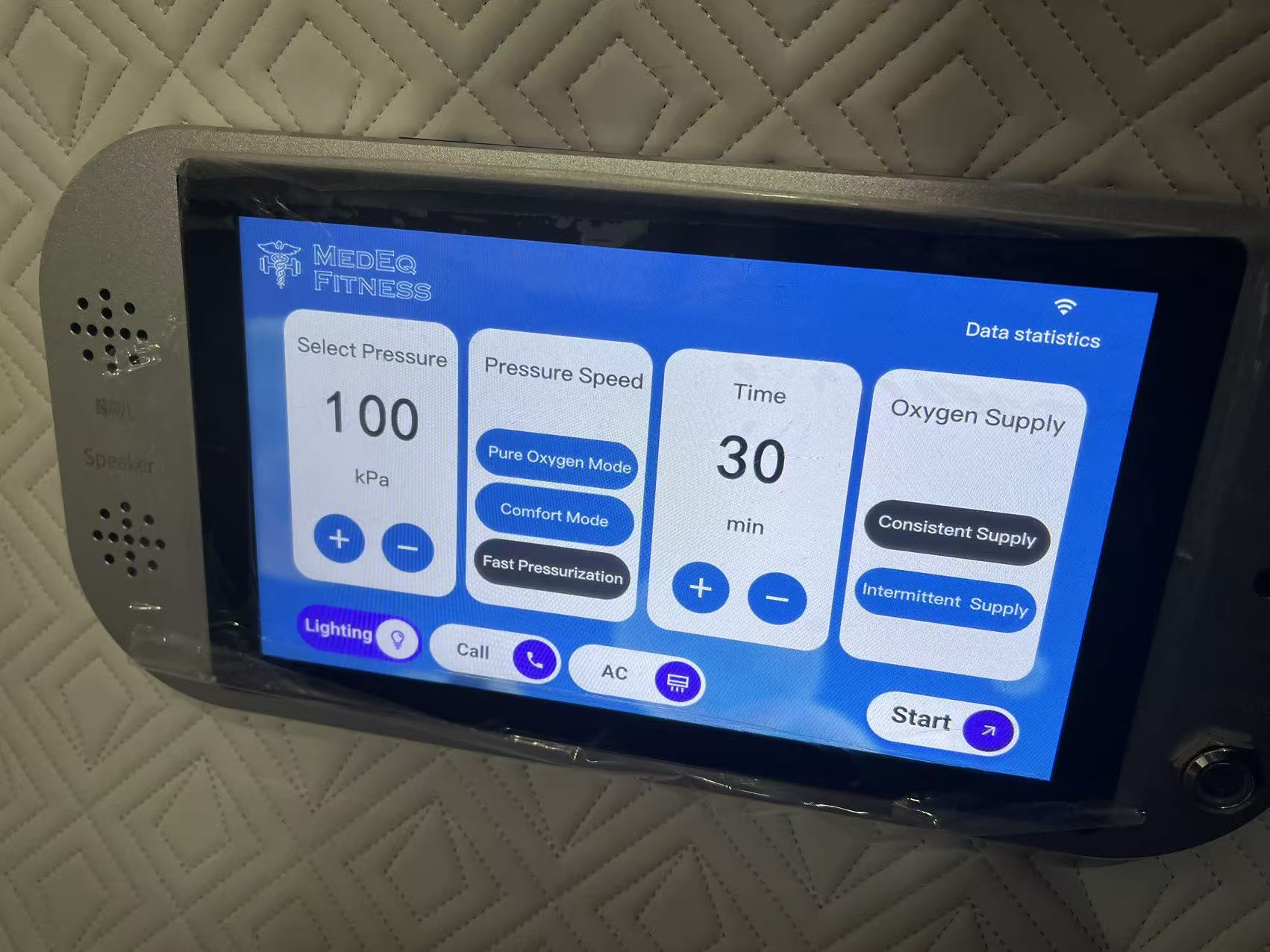

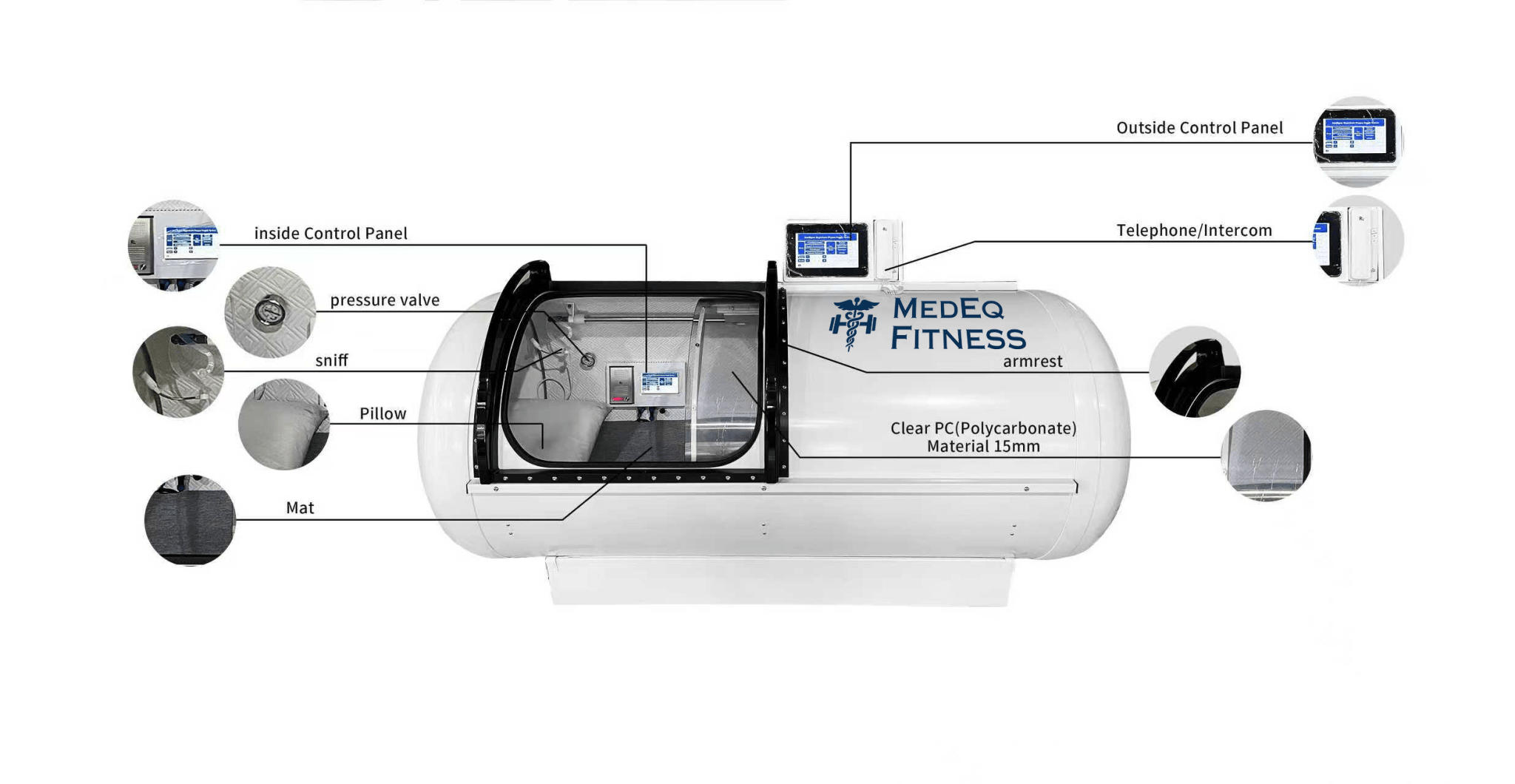

• • Smart Control & Communication: Dual control screens (inside and outside) for full duplex control by both operator and user. Wireless intercom built into the capsule so staff can monitor and communicate with the user at all times.

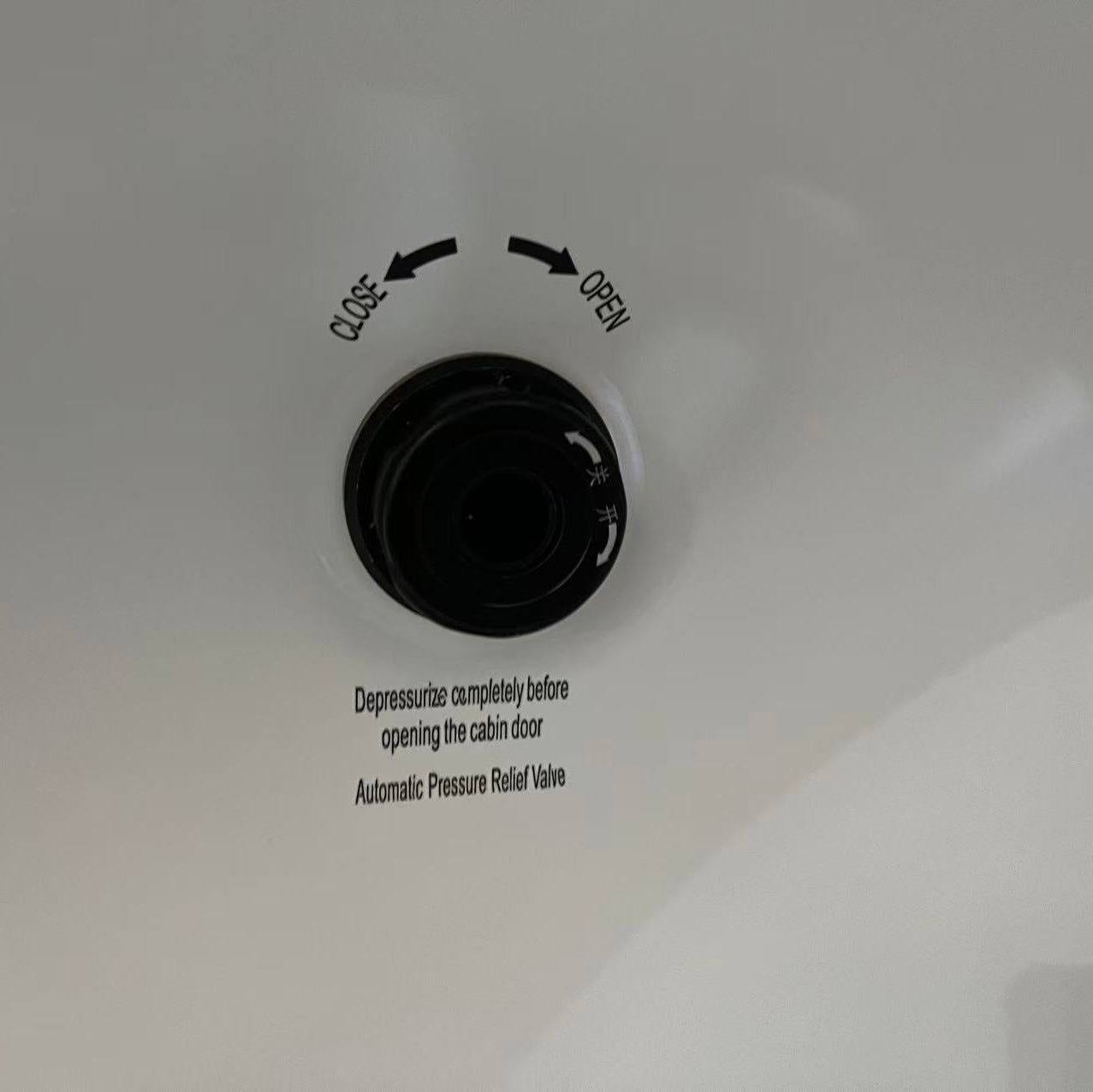

• • Safety Systems: Hard-shell capsule constructed from aircraft-grade aluminum alloy engineered for pressure vessel applications. Redundant safety valves and pressure relief hardware for over-pressure protection. Emergency stop and rapid depressurization features to bring the chamber back to ambient pressure quickly if required.

Specifications

• • Model Platform: Kingshare KX-Y01 capsule-type hard-shell chamber

• • Application: Monoplace – 1 user

• • Operating Pressure: Nominal working pressure up to 2.0 ATA (≈2 bar); typical KX-Y01 configuration: 1.9 ATA operating setpoint (adjustable down to mild pressures)

• • Internal Length: 2000 mm (≈78.7 in)

• • Internal Diameter: 750 mm (≈29.5 in)

• • Cabin Material: Aircraft-grade aluminum alloy

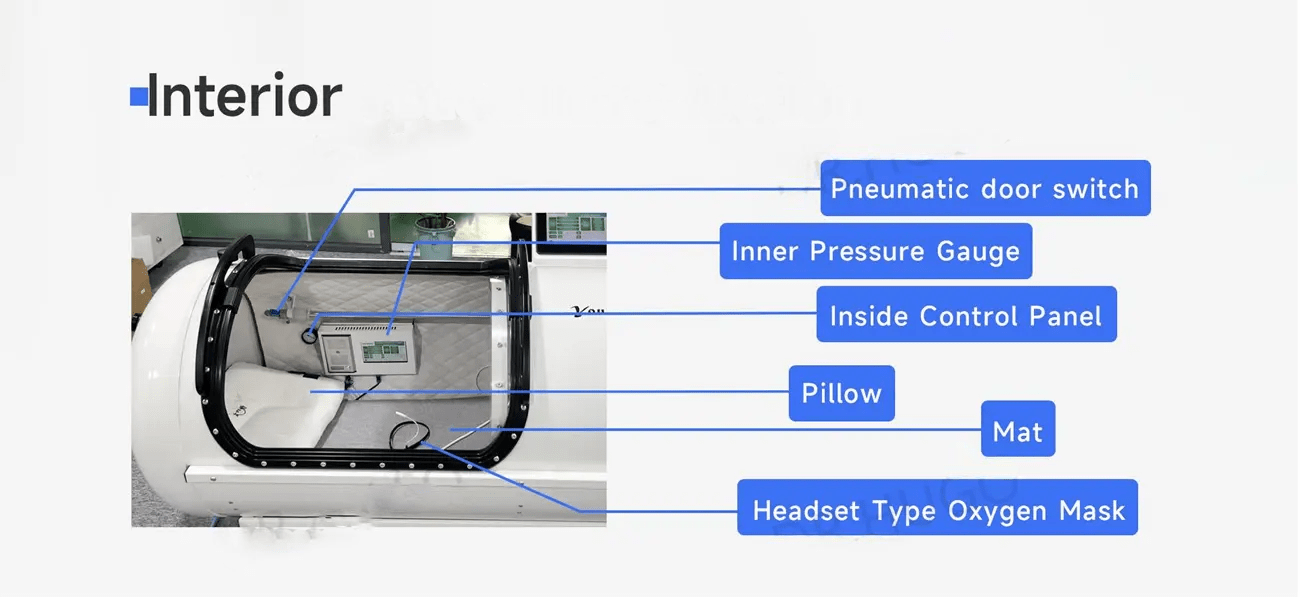

• • Interior Finish & Lighting: Wireless intercom, internal touch/control screen (duplex with outside screen)

• • Diffused O₂ Concentration: ≤23%

• • Humidity: ~26%

• • Air-Conditioning: Integrated "Cool" AC via host unit

• • Cabin Noise: ≤20 dB typical internal noise environment

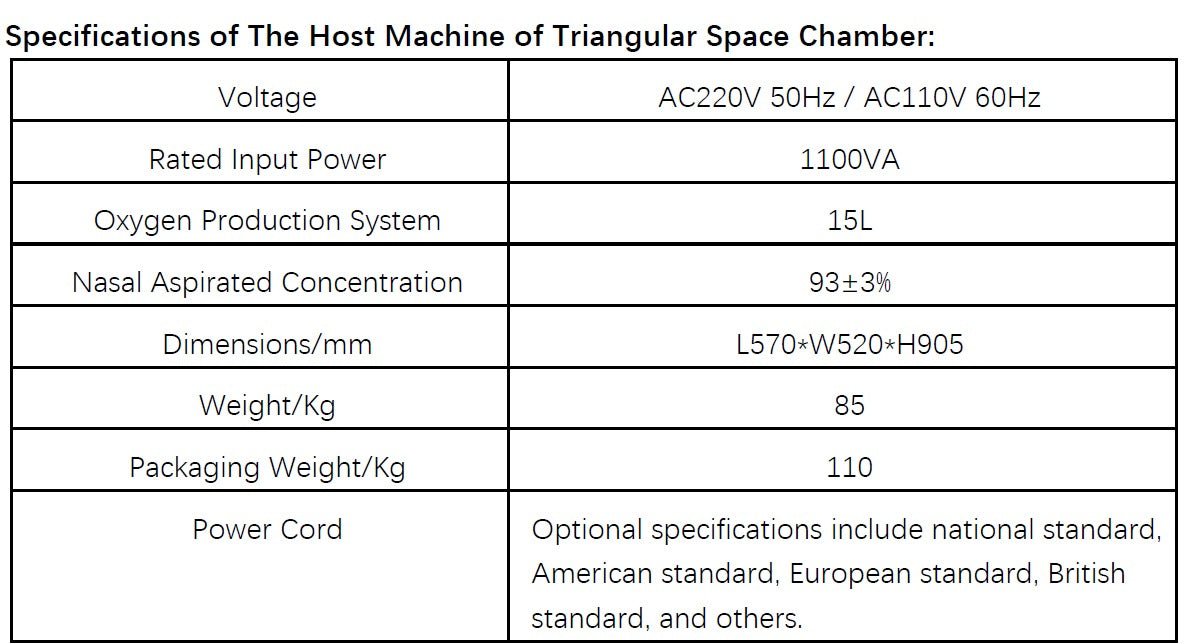

• • Host Dimensions: ~590 × 520 × 903 mm (≈23.2 × 20.5 × 35.6 in)

• • Power Supply: 220 V 50 Hz or 110 V 60 Hz compatible

• • Power Draw: ~850–1000 W

• • Oxygen Pressure (Host Side): ~120–140 kPa (before BIBS regulation)

• • Oxygen Purity (PSA): ≈93% ±3% at therapeutic pressure

• • Oxygen Flow Capacity: Up to ~15 L/min (unit-set; varies slightly with pressure and configuration)

• • Host Operation Noise: ≤50 dB

What's Included

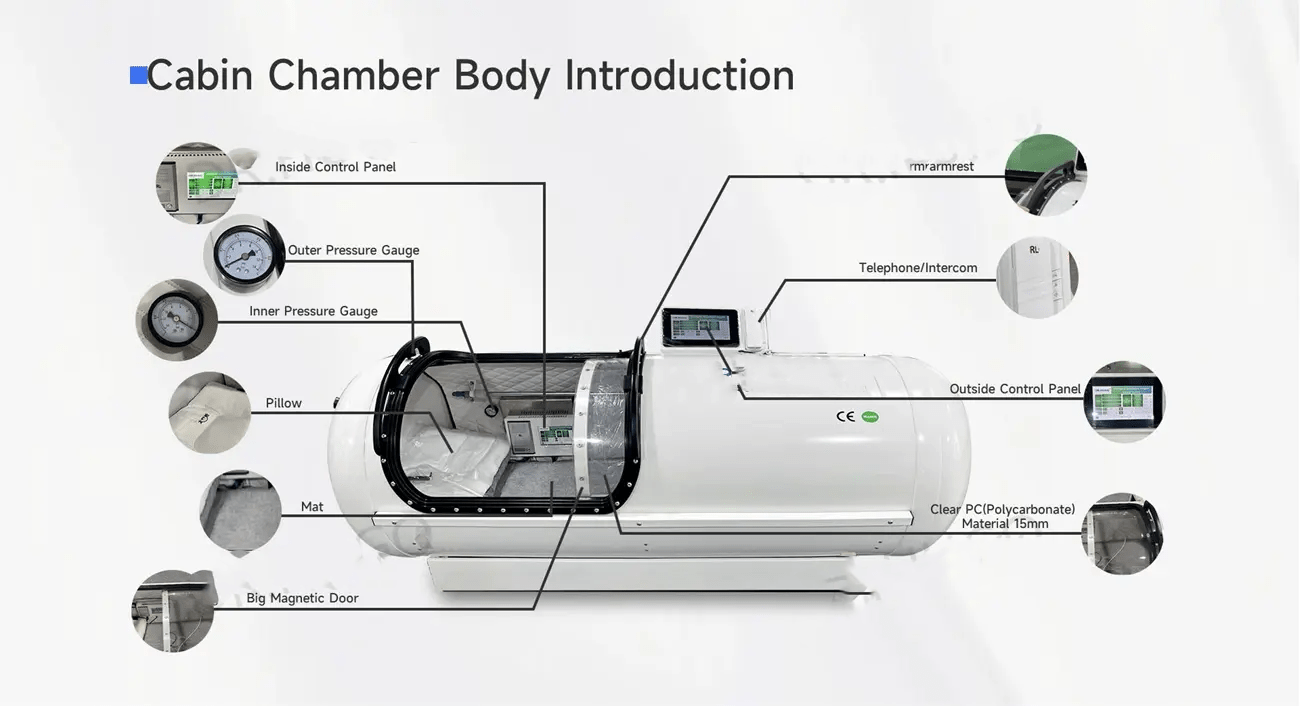

• Chamber System:

  • • Aircraft-grade aluminum alloy hard-shell capsule
  • • Internal wireless intercom
  • • Dual control screens (internal and external)

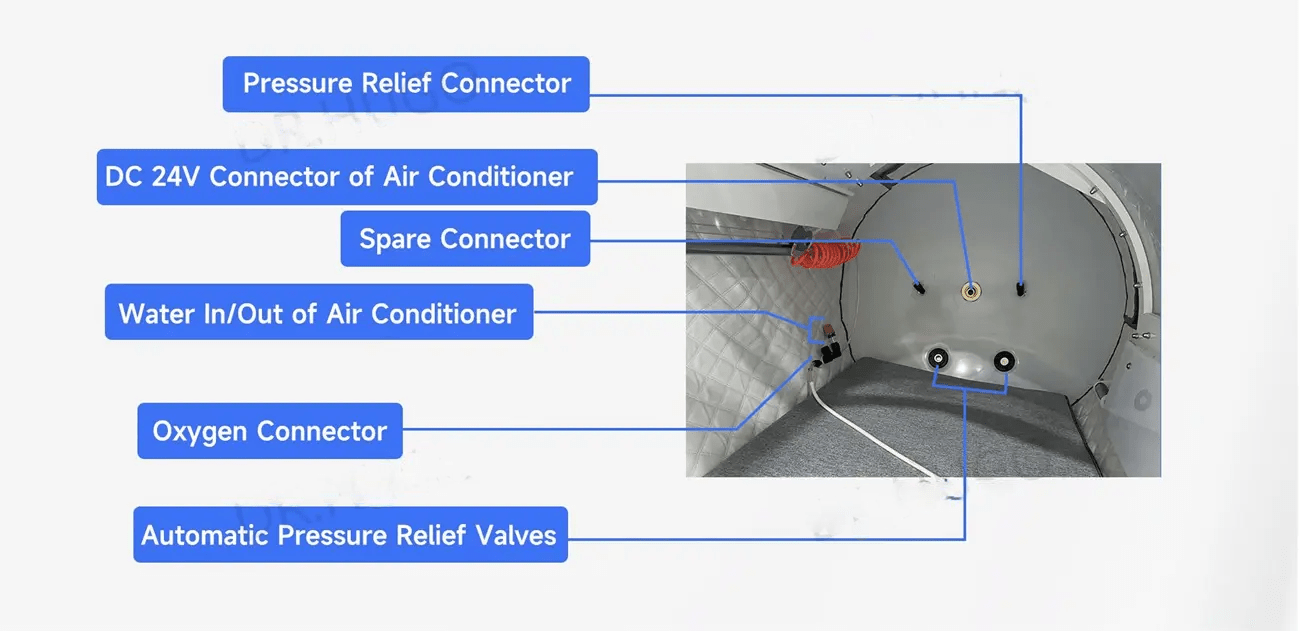

  • • 1 × oxygen absorption terminal (BIBS connection point)
  • • LED interior lighting

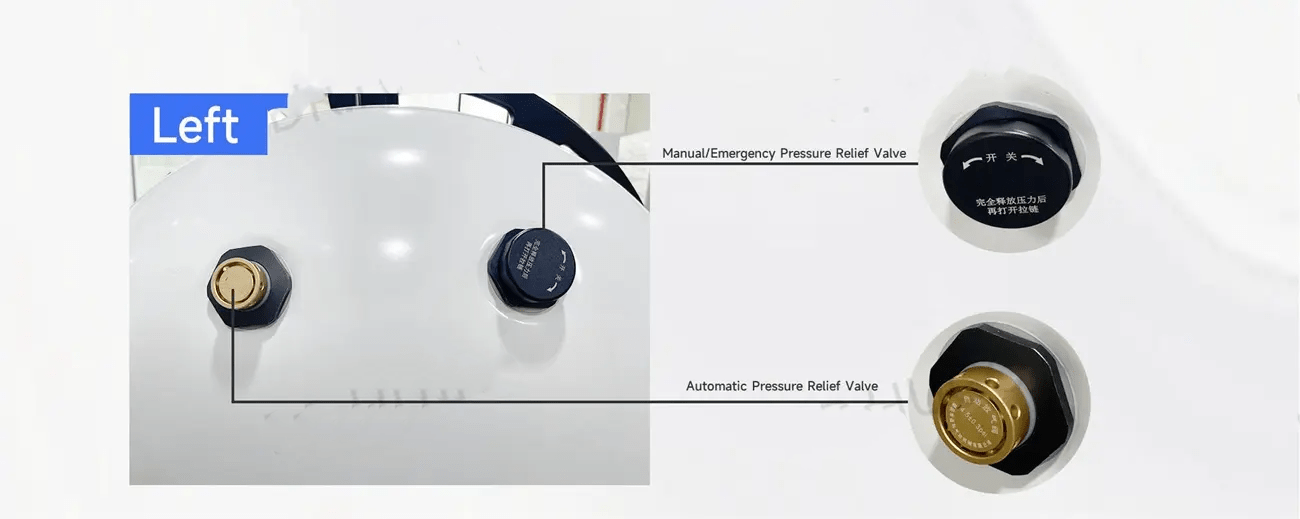

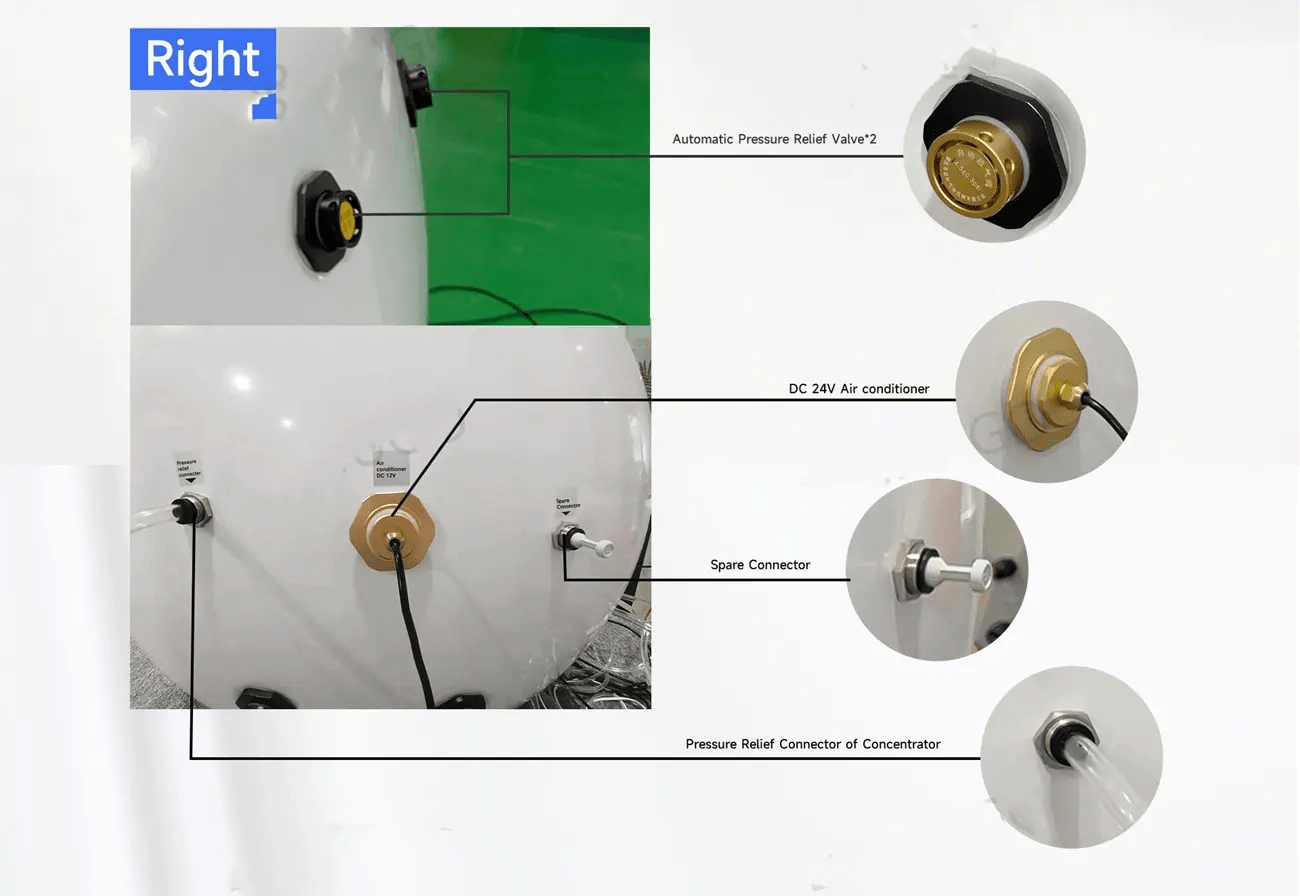

  • • Redundant safety valves and pressure relief hardware
  • • Emergency depressurization features

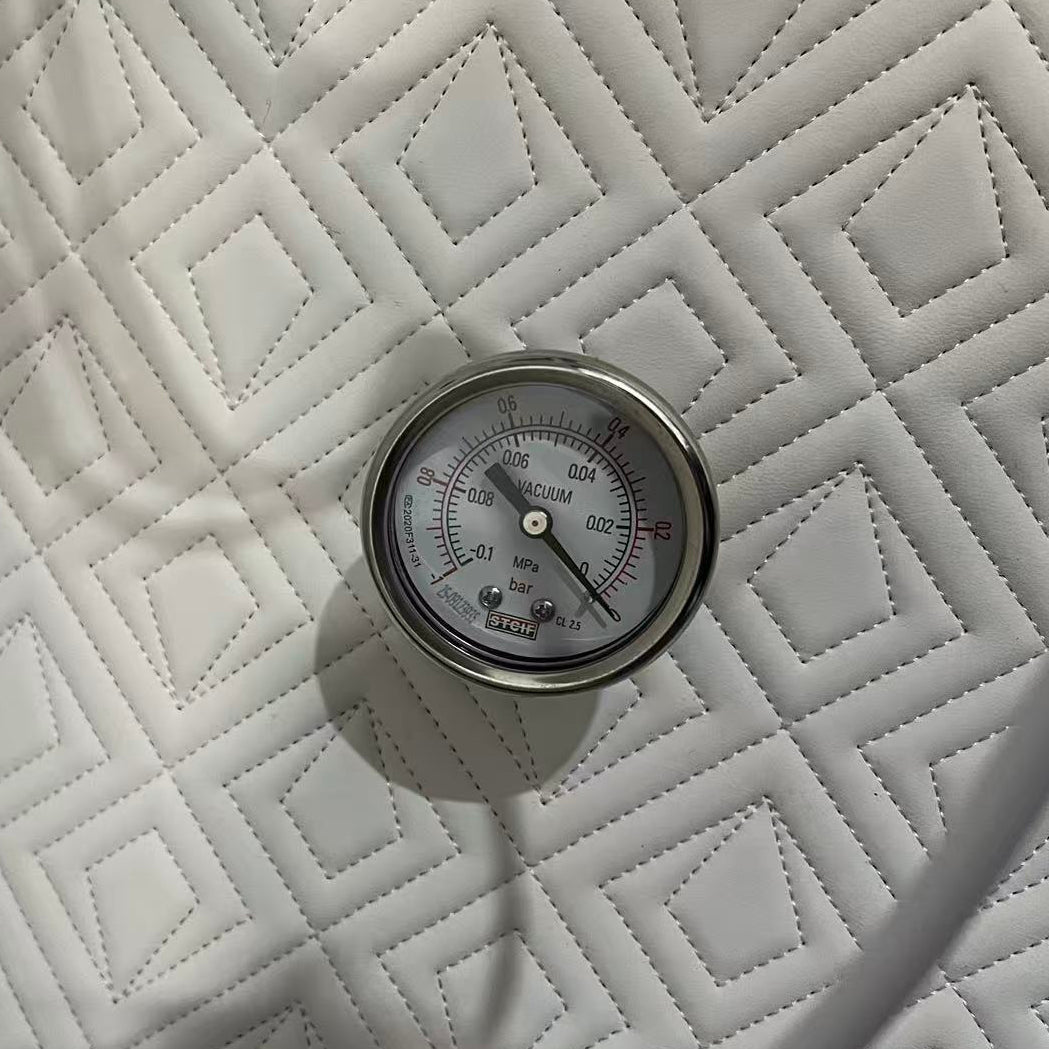

  • • Pressure monitoring gauges

• All-in-One Operating Unit:

  • • Oil-free air compressor for pressurization
  • • PSA oxygen concentrator (≈93% ±3% purity)
  • • Integrated air-conditioning system
  • • Intelligent electronic control with programmed pressure curves
  • • Manual override and emergency depressurization options
  • • Dual voltage compatible (220V 50Hz / 110V 60Hz)

• Air Quality & Comfort:

  • • Multi-stage intake filtration (particulate + advanced filters)
  • • Integrated negative-ion generator
  • • Cabin temperature control
  • • Humidity management (~26%)
  • • Low-noise operation (≤50 dB host, ≤20 dB cabin)

• Optional Upgrades:

  • • Built-In Breathing System (BIBS) with sealed masks

  • • Dedicated oxygen supply and exhaust pathways

  • • Red light panel option

FDA Disclaimer & Regulatory Information

The MedEq C750+ is designed for general wellness, recovery, and conditioning applications. Hyperbaric oxygen therapy is cleared by the U.S. Food and Drug Administration (FDA) for specific medical indications only.

MedEq Fitness does not claim that this product diagnoses, treats, cures, or prevents any disease beyond FDA-cleared indications. Always consult a qualified healthcare professional to determine whether hyperbaric oxygen therapy is appropriate for your individual needs.

MedEq Fitness — Physician-Led Recovery Technology.

The MedEq C750+ pairs hard-shell performance with integrated oxygen delivery, advanced filtration, and smart dual-screen control to create a premium HBOT experience for clinics, recovery centers, and discerning home users.

MedEq Fitness uses the Kingshare KX-Y01 platform customized to our specifications.

Learn more about the BIBS upgrade →
